256 Sensitivity Level Metal Scanner Detector 18 Zones Airport Security Machines

Product Categories

SHENZHEN UNISEC TECHNOLOGY CO.,LTD

Contact Now

Name: 256 Sensitivity Level Metal Scanner Detector 18 Zones Airport Security Machines
Brand: Uniqscan
Price: 1 USD

Brand Name : Uniqscan

Model Number : UB600

Certification : CE, ISO

Place of Origin : China(Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : Western Union, T/T, L/C

Delivery Time : 7 days after the payment

Packaging Details : Carton Box

Supply Ability : 1000 sets per month

Name : metal detector body scanner

Warranty : 2 years

Sensitivity : 256 Sensitivity Level

Detecting zone : 18 zones

Model No : UB600

Contact Now

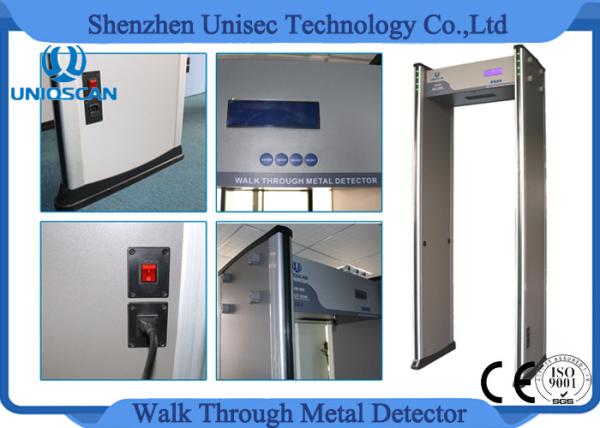

256 Sensitivity Level Metal Scanner Detector 18 Zones Airport Security Machines

General Specifications:

Tunnel Size:2000mm(H)X700mm(W)X605mm(D)

Warranty:2 years

Certification:ISO9001 / CE

Packing Size:"door panels: 2290*560*190mm *1ctn & control unit: 760*380*260m*1ctn"

Detecting zone:18 zones

Model No:UB600

Parameters

Power Supply	AC100V-240V / 50-60Hz
Working temperature	-20℃--+50℃
Working Frequency	4KHZ—8KHZ
Standard External size	2200mm(H)X800mm(W)X580mm(D)
Standard Internal size	2010mm(H)X700mm(W)X500mm(D
Package size for door panels	2260650260mm *1ctn
Package size for control unit	780390250 mm*1ctn
Gross weight	65KG

Characteristic & Function

18 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones
Small LCD screen, English operating software, easy to operate
Sensitivity adjustable: Each zone has 256 sensitivity level
Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
armless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on,no need initial or periodic calibration
Modularization design,easy for maintenance and replacement.
Sensitivity Test piece: One yuan Coin, omnidirectional detection
4-8 hours backup battery (Option)
Use domain
Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc

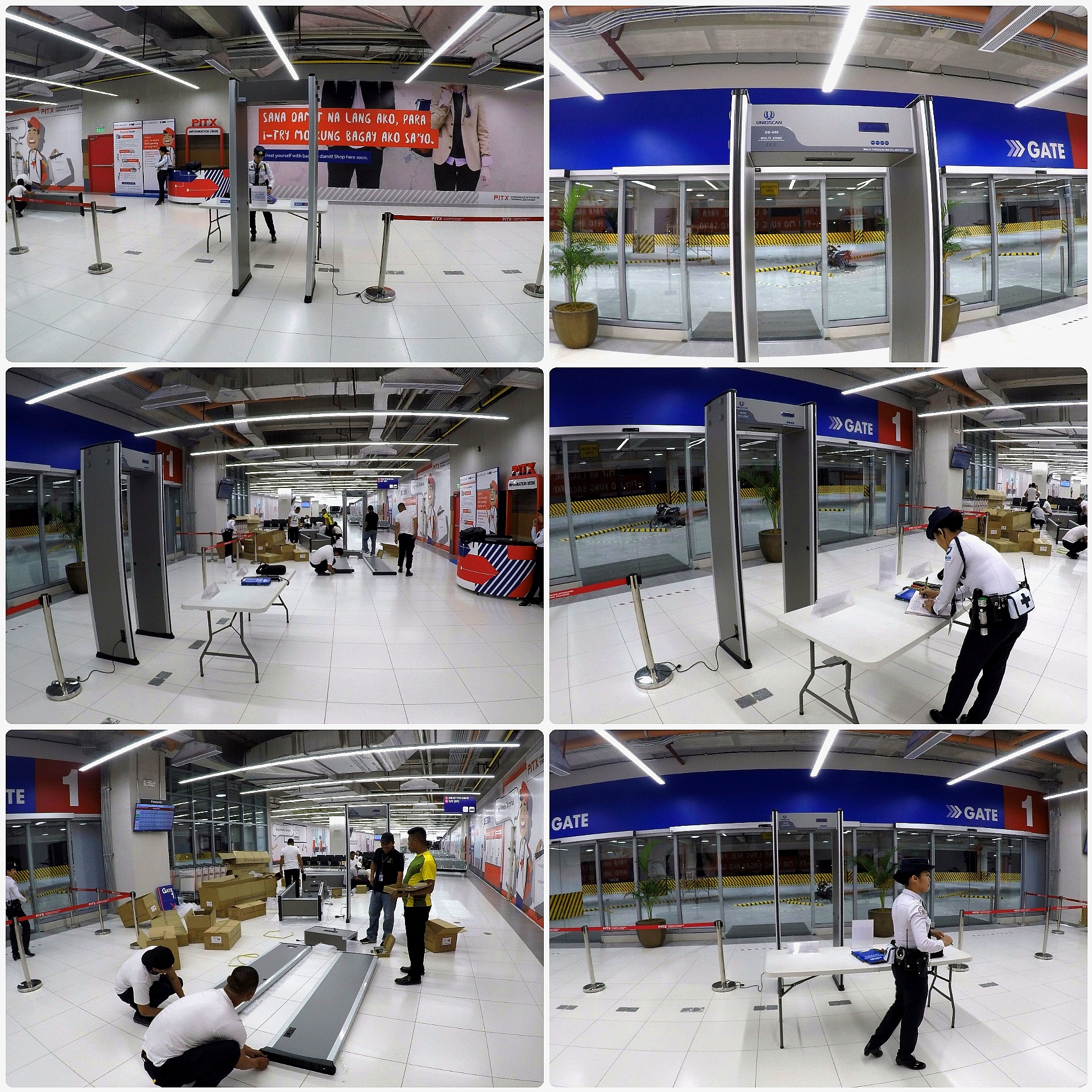

Photo:

256 Sensitivity Level Metal Scanner Detector 18 Zones Airport Security Machines
