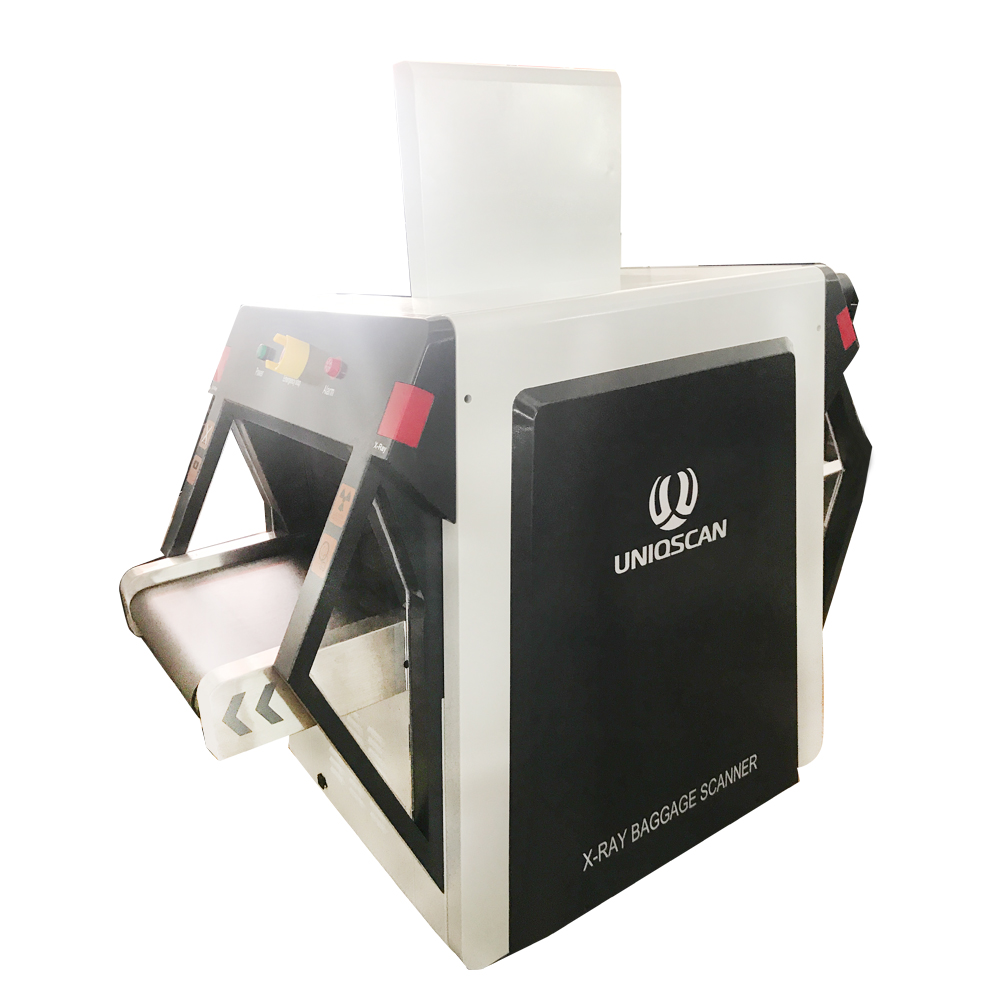

New Designed X-Ray Baggage Scanner with Dual Energy

Name: New Designed XRay Baggage Scanner with Dual Energy
Brand: UNIQSCAN
Price: 1 USD

New Designed X-Ray Baggage Scanner with Dual Energy Manufactures

Brand Name : UNIQSCAN

Model Number : SF5030C

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1unit

Price : Negotiation

Payment Terms : MoneyGram, Western Union, T/T, D/P, D/A, L/C

Supply Ability : 300units/month

Delivery Time : 7 working day after got the payment

Packaging Details : Wooden case

Tunnel Size : 500(W)*300(H)mm

Conveyor speed : 0.22m/s

Conveyor Max Load : 150KG

Single inspection dosage : < 1.32μGy

Wire Resolution : 40AWG

Steel Penetration : 43mm

Film Safety : For ISO 1600

X-Ray Sensor : 24bit

Orientation : Upward

Storage Temperature : -20℃ to 60℃

Contact Now

New Designed X-Ray Baggage Scanner with Dual Energy

1,Specification

Model: SF5030C(Dual energy)

General Specifications

Tunnel Size :	500 (W) ×300 (H) mm
Conveyor Speed:	0.22m/s
Conveyor Max Load:	150 kg
Single inspection dosage:	< 1.32μGy
Wire Resolution:	40AWG
Steel Penetration:	40mm
Film Safety:	For ISO 1600

X-RAY GENERATOR

Orientation:	Upward
Tube Current:	0.4~1.2mA(adjustable)
Anode Voltage:	100~160KV(adjustable)
Angle:	80°
Generator cooling/working periods:	Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature:	-20ºC to 60ºC
Operating Temperature:	0ºC to 45ºC
Relative Humidity:	20 to 95% non-condensing
System Power:	220 VAC (±10%) 50±3HZ
Power wastage:	1.0 KW (Max)
Noise	<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Dual energy

Image Performance System:

Display	High-resolution 19 inch color LCD display
Color quality	24-Bit real colors based on materials
Edge enhancement	Object contour edge is more distinct
Super image enhancement	Image detail is more distinct
High penetration display	Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display	Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier	Partial magnifying function
Brightening/dimming	Increase/Decrease brightness of image
Image recurrence	Display the previous twenty images and process any one of them
Image restoration	Restore image to initial status
Image storage	Real-time store any image and process it in operation status

Special features:

Network interface	Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray	Ray is transmitted under automatic control, avoiding the error
One-key shutdown control	Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye	Capable of expediently observing the magnifying area
Self-diagnosis function	Give message automatically if malfunction for prompt maintenance

New Designed X-Ray Baggage Scanner with Dual Energy

2,Detaild info for the part

New Designed X-Ray Baggage Scanner with Dual Energy

3,Scanned images

New Designed X-Ray Baggage Scanner with Dual Energy
