Customized Language Under Vehicle Inspection System Large Format Transverse

SHENZHEN UNISEC TECHNOLOGY CO.,LTD
Contact Now

Customized Language Under Vehicle Inspection System Large Format Transverse

Brand Name : UNIQSCAN

Model Number : UV300-F

Certification : CE,ISO

Place of Origin : China

MOQ : 1 unit

Price : negotiation

Payment Terms : MoneyGram, Western Union, T/T, D/P, D/A, L/C

Supply Ability : 300units/month

Delivery Time : in 7 working days

Packaging Details : Wooden box

Store or load time : <1 second

Display resolution : 1920 * 1080P

Scene image display : ≥1 channel

Weight : 180kg

Scanner size : 1200*350*210mm

Vehicle Image local magnification : > 2 times

Vehicle Image scaling : 16 times

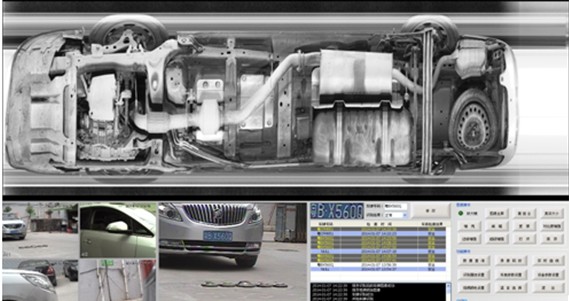

Vehicle image display mode : large format transverse

Vehicle image storage format : BMP or JPEG

System interface language : English (can be customized)

Contact Now

Fixable Under Vehicle Surveillance / Inspection System with customized language operation system

1, Specification

Parameters:

► Store or load time: <1 second;

► Vehicle Image local magnification: > 2 times;

► Vehicle Image scaling: 16 times;

► Vehicle image display mode: large format transverse;

► Vehicle image storage format: BMP or JPEG;

► System interface language: English (can be customized);

► Display resolution: 1920 * 1080P

► Communication interface: RS232/RS422;

► Scene image display: ≥1 channel

► Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image

Scan mode: linear scanning, the ground sensor coil trigger;

Vehicle speed: 1-60km/h, suggest speed : less than 30km/h

View angle: 175 degrees

Image Longitudinal resolution: 2048 pixels CCD;

Scanner connecting cable: 100 meters (can be customized)

Lighting components : Four single sealed LED surface light source ;

Life : 100,000h

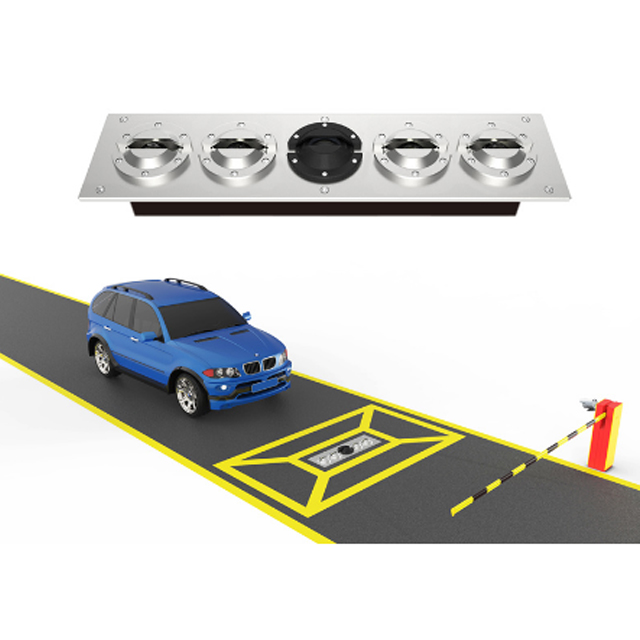

Under Vehicle image scanner with a unique open-wide field scan design;

Working voltage: DC24V

Power Supply:AC110V-240V/50-60Hz

Structure design:single sealed design;

Loading weight: 30 Tons

Scanner size: 1200*350*210mm

Weight: 180kg

Environment temperature: -40 degrees - +70 degrees

License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )

Customized Language Under Vehicle Inspection System Large Format Transverse

Computer:

Display:22 inch color LCD Screen

CPU:INTEL core Quad-Core Processor

Motherboard : dedicated motherboard

Memory : DDR3 , more than 4GB

Hard disk : 500G high-speed hard disk

Graphics card : DDR3, 192BIT independent graphics

Appearance: stainless steel composite material

Working current: 3A

Working temperature : -20 ℃ ~ 55

Customized Language Under Vehicle Inspection System Large Format Transverse
