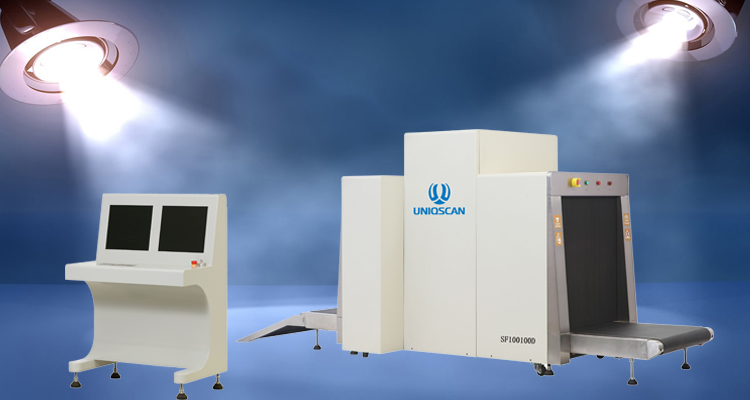

Name: Dual View Baggage Screening Security Scanners Xray Baggage Inspection System
Brand: UNIQSCAN
Price: 1 USD

Brand Name : UNIQSCAN

Model Number : SF100100D

Certification : CE , ISO

Place of Origin : CHINA

MOQ : 1 UNIT

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : 500 UNITS FOR ONE MONTH

Delivery Time : IN ONE WEEK

Packaging Details : WOODEN BOX

Product Name : Dual View X-ray baggage inspection system

Tunnel Size : 1000(W) X1000 (H) mm

Power consumption : 1.0KW (Max)

Conveyor Speed : 0.22m/s

Wire Resolution : 38AWG

Anode Voltage : 140~160KV

Leakage radiation : <0.1µGy/h

Steel Penetration : 34mm

Contact Now

Dual View Baggage Screening Security Scanners Xray Baggage Inspection System

General Specification:

X-Ray Generator Specifications:

Tube Current:	0.7~1.2mA
Anode Voltage:	140~160KV
Cooling:	Sealed oil bath with forced air
Duty Cycle:	Rated for 100%Duty Cycle
Beam Direction:	Downward and Sideward
Beam Angle:	80°
Detector:	L-shaped Array * 2

Environment Specifications:

Operating temperature/humidity:	0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity:	-20ºC ~ 60ºC/20% ~ 95% (Non-condensing)

Computer Specification:

Processor:	I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory:	4GDDR3 Loptop Memory
Hard Disk :	1T

Image Display:

Display:	19'' High Resolution LCD Monitor *2
Display Resolution:	1280*1024;24 bit/pixel Color
Contrast Sensitivity:	24 Visible Levels, 4096 Gray Level
Image storage:	200,000 pictures in real time (can be customized)
Zoom:	64 Times Enlarge, Whole screen continuous observation

Application:

End user	Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals	SF6040; SF6550; SF10080; SF100100
Factories	SF5030; SF5636; SF6040; SF6550
Embassies, Buildings	SF5030; SF5636; SF6040; SF6550
Military installations	SF5030; SF6040; SF6550; SF8065; SF100100
Prisons, Hotels, Schools,	SF5030; SF5636; SF6040; SF6550; SF10080
Security checkpoints,	SF5030; SF6040; SF6550; SF8065; SF10080
Dual View:	SF6040D;SF6550D;SF8065D;SF10080D;SF100100D

UNIQSCAN SF10010D
